River Q4
Multi-Frequency River Q4 ADCPs are designed for River/Channel Flow and Sediment Discharge.
The Multi-Frequency River Q4 ADCPs employ advanced 4th generation RTI ADCP Technologies providing:
- Dual-Frequency Bottom Track, Current Profile, and Altitude measurements.
- Quad or Triple Target Strength measurements for Sediment Concentration and Grain Size estimation.

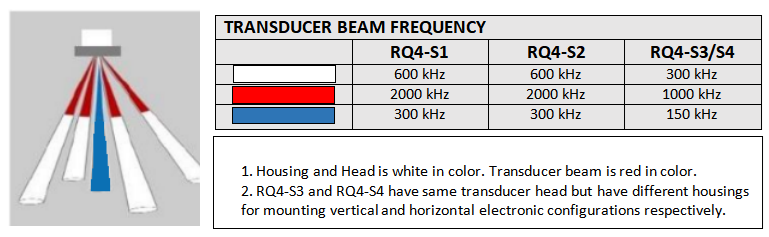

Providing measurement of calculation of both River Flow and Sediment Discharge. Four Optional configurations (RQ4-S1, RQ4-S2, RQ4-S3/S4) are available as shown in the figure and table below:

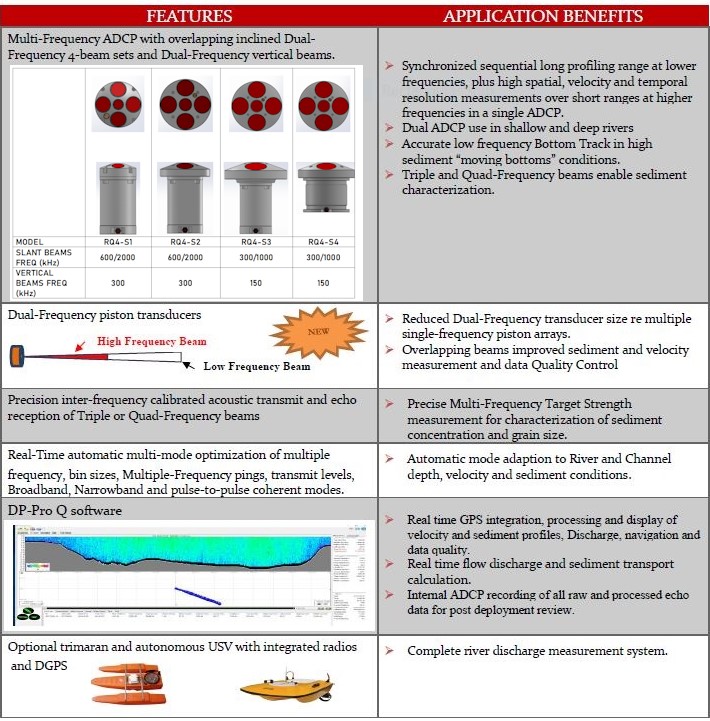

Features and Benefits
RTI’s Multi-Frequency River Q4 ADCPs employ advanced 3rd generation RTI ADCP Technologies providing:
- Dual-Frequency Bottom Track, Current Profile, and Altitude measurements.
- Quad or Triple Target Strength measurements for Sediment Concentration and Grain Size estimation.
Illustration of Dual Frequency Technology
- MF River Q4 Brochure
- Dual Frequency Patent 1
- Dual Frequency Patent 2
- RQ3- S1 Outline
- RQ3-S2 Outline
- RQ3-S3 Outline
- RQ3-S4 Outline
- Riverboat, New Frame Assy B
- Large Center Hull
- RQ3-S4 in River boat, Top view
- RQ3-S4 in River boat, Side view
Testing Results
Coming soon...
